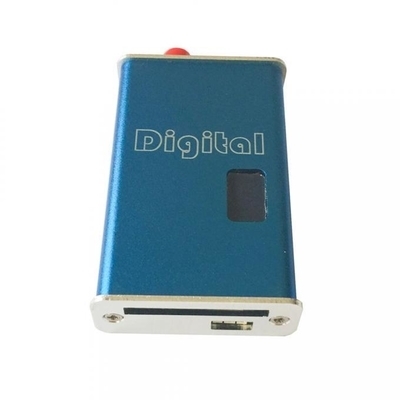

1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone

Name: 1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone
Brand: Kimpok Technology Co., Ltd
SKU: KP-MN5A
Price: 145.00 USD
Availability: InStock

Einzelheiten zum Produkt:

Herkunftsort:	Shenzhen, China
Markenname:	Kimpok
Zertifizierung:	CE certificate
Modellnummer:	KP-MN5A

Einzelheiten

Herkunftsort:

Shenzhen, China

Markenname:

Kimpok

Zertifizierung:

CE certificate

Modellnummer:

KP-MN5A

Hervorheben:

High Light

Hervorheben:

1.5Ghz FPV VTX for RC drone

5W mini wireless video transmitter

FPV VTX with high power output

Handelsinformationen

Min Bestellmenge:

Preis:

Verhandlungsfähig

Verpackung Informationen:

Internationale Standardverpackung

Lieferzeit:

3-7 Arbeitstage

Zahlungsbedingungen:

L/c, t/t, paypal

Versorgungsmaterial-Fähigkeit:

5000 Prozent/Monat

Beschreibung des Produkts

1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone

Product Highlights

1.5Ghz FPV VTX for RC drone

5W mini wireless video transmitter

Analog VTX with long-range transmission

Basic Information

Place of Origin:

Shenzhen, China

Brand Name:

Kimpok Technology

Certification:

CE certification

Model Number:

KP-MN5A

Product Features

1.6G FPV VTX RC Racing Drone Wireless Video Transmitter
1.5Ghz frequency band for stable video transmission
Compact dimensions: 73×41×14mm
12 channels for flexible frequency selection
5000mW RF power for strong signal transmission

Technical Specifications

Specification	Details
Model Number	KP-MN5A
Frequency	1.5Ghz (1.4G/1.5G/1.6G)
RF Power	5000mW (1500mW transmit power)
Voltage	DC 12V
Current	600mA
Channels	12 Channels
Dimensions	73×41×14mm
Weight	90g (Transmitter: 82g)
Operating Temperature	-10℃ to +50℃
Certification	CE Certification

Installation Guide

The transmitter comes with 5 plugs for connecting to transmitter, camera, and power supply
Connect red plug to DC 12V/1000mA power source or battery
Connect white and yellow plugs to camera's audio and video inputs respectively
Connect black plug to camera's power input jack
Use control button to change receiver channel
Press and hold button to enable power saving mode
Ensure transmitter and receiver are set to same channel

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiation

Packaging Details:

International standard packing

Delivery Time:

3-7 working days

Payment Terms:

T/T, PayPal, Alipay

Supply Ability:
