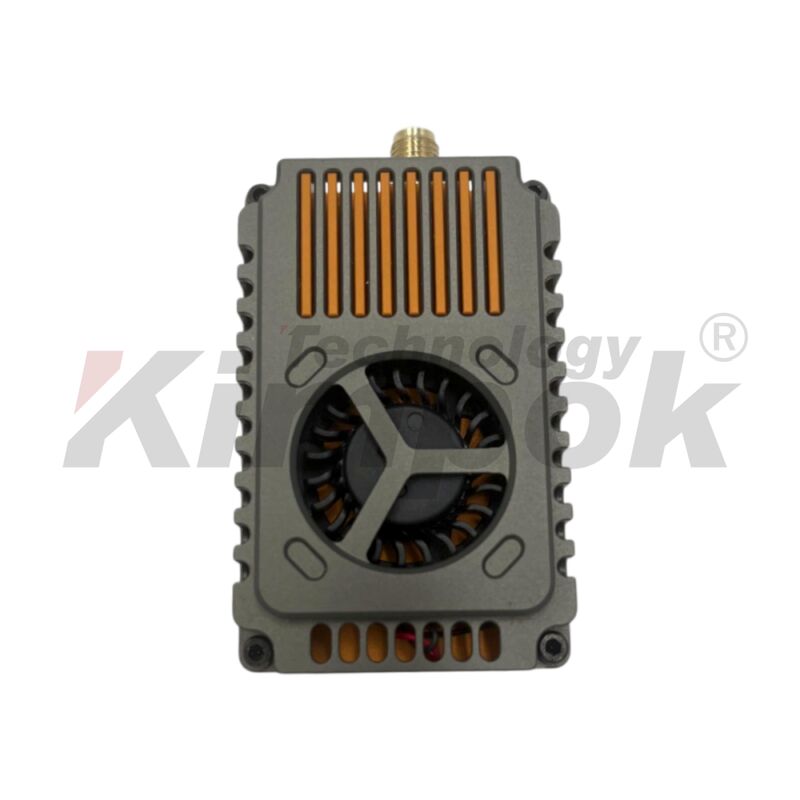

3.3GHz 10W FPV VTX Video Transmitter 16CH 40km Ultra Long Range

Name: 3.3GHz 10W FPV VTX Video Transmitter 16CH 40km Ultra Long Range
Brand: Kimpok Technology Co., Ltd
SKU: KP-T33A10
Price: 145.00 USD
Availability: InStock

Einzelheiten zum Produkt:

Herkunftsort:	China
Markenname:	Kimpok
Zertifizierung:	CE Cerfication
Modellnummer:	KP-T33A10

Einzelheiten

Herkunftsort:

China

Markenname:

Kimpok

Zertifizierung:

CE Cerfication

Modellnummer:

KP-T33A10

Kanal:

16 Ch

Frequenzbereich:

3170mHz- 3470MHz

Stromversorgung:

7-36V DC 2-8s

Gewicht:

16g

Frequenzbanddivision:

10W (unterstützt 1W/2,5W/5W/7,5W/10W)

Handelsinformationen

Min Bestellmenge:

Preis:

Verhandlungsfähig

Verpackung Informationen:

Internationale Standardverpackung

Lieferzeit:

5-7 Werktage

Zahlungsbedingungen:

T/t, l/c, paypal

Versorgungsmaterial-Fähigkeit:

4.000 Stück pro Monat

Beschreibung des Produkts

Product Description

10W 3.3GHz 16CH Ultra Light FPV Transmitter for Racing Drone Image Transmission

Key Features

16-channel FPV video transmission transmitter operating at 3.3GHz
Adjustable power output (1W/2.5W/5W/7.5W/10W)
Compatible with 4-8S batteries (15V-36V input)
Ultra-lightweight design at just 16g
Advanced heat dissipation with aluminum alloy shell, heat sink, and fan
Built-in temperature protection (100℃ power reduction, 95℃ recovery)

Technical Specifications

Frequency Range	3.3GHz, 16 channels (3170MHz-3470MHz)
Frequency Band Division	Band A (3330-3470MHz), Band B (3170-3310MHz)
Maximum Power	10W (supports 1W/2.5W/5W/7.5W/10W adjustment)
Input Voltage	DC 15V-36V (supports 4-8S batteries)
Antenna Interface	SMA female-type internal-hole
Intelligent Audio	IRC Tramp
Dimensions	65.8mm × 37.3mm × 19.3mm
Weight	16g
Mounting	20mm × 20mm (hole diameter 2mm)

Product Advantages

Versatile power adjustment for different transmission distances and scenarios
Wide voltage compatibility with mainstream drone batteries for plug-and-play operation
Efficient thermal management prevents overheating and extends product lifespan
Intuitive operation with button controls and clear LED status indicators
Minimal weight impact on racing drone performance

Applications

Ideal for FPV image transmission in racing drones and other small-sized UAVs requiring stable, efficient short-distance video transmission.
